Call Us NowFREEPLAY SPECIFICATIONS
Acoustic Performance
Frequency Response (–10 dB)
65 Hz – 20 kHz
Frequency Response (–3 dB)
80 Hz – 20 kHz
Max peak SPL (@ 1m calculated)
1
114 dB
Crossover Point
3.0 kHz
Dispersion 90 ̊
Equalization
Low Shelving
±15 dB @ 80 Hz
Mid-Peaking
±15 dB @ 2.5 kHz
High Shelving
±15 dB @ 12 kHz
Increments
±3 dB
High-Frequency Section
Voice Coil Diameter
1.0 in / 25 mm
Horn Entry Diameter
1.0 in / 25 mm
Diaphragm Material
Polyethylene Naphthalate (PEN
Magnet Material
Ferrite
Low-Frequency Section
Woofer Diameter
8.0 in / 203 mm
Voice Coil Diameter
1.2 in / 30 mm
Diaphragm Material
Treated Paper
Magnet Material
Ferrite
1
Calculated from driver sensitivity and amplifier power.
Power Amplifiers
System Power Amplification
Rated Power
150 watts rms
300 watts peak
Low Frequency Power Amplifier
Rated Power
75 watts rms
150 watts peak
Rated THD
1%
Cooling
Convection
Design
Class D
High Frequency Power Amplifier
Rated Power
37 watts rms x2
75 watts peak x2
Rated THD
1%
Cooling
Convection
Design
Class D
System Processing
Channel EQ
3-band
Main EQ
4 voicing modes
FX
16 presets
Feedback Destroyer
On / Off
Input / Output
XLR
10 k
balanced
1/4″ TRS
100 k
balanced
1/4″ TS
400 k
unbalanced
1/8″
10 k
Monitor Output
1/4” TRS balanced

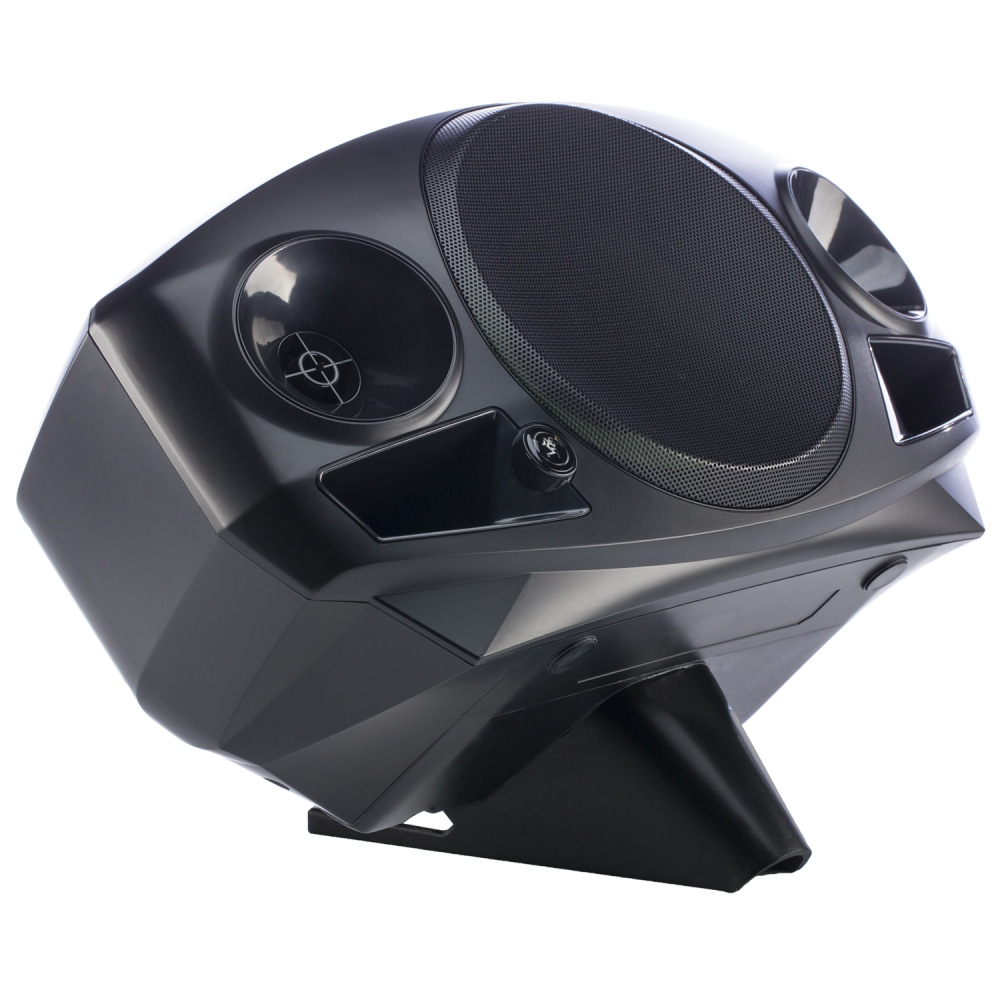

Mackie Freeplay LIVE Personal PA
$499.99
FreePlay™ is the ultimate stereo PA with a portable, battery-powerable design for amazing sound anywhere. With Bluetooth® music streaming from any device and connections for mics, guitars and more, FreePlay is perfect for any professional or personal application.
Out of stock
