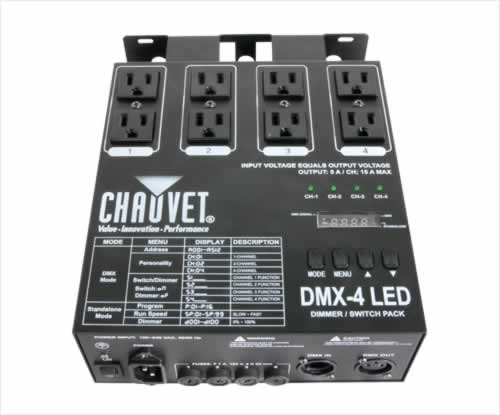

The Chauvet DMX4LED is a 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. Sixteen user-selectable chase patterns make programming a breeze.
FEATURES:
• 4-channel dimmer/switch pack optimized for use with small LED fixtures
• Each channel can be set to any DMX address which makes it extremely easy to program
• Each channel can be individually set as a dimmer or a switch which offers great flexibility
• 4 duplex outlets allow up to 8 devices to be controlled simultaneously
• Separate LED indicators clearly show the status of each channel
• Easy-access to built-in automated programs generate a synchronized show
• Automated programs have adjustable speeds and dimmer levels which offer great control without DMX
SPECIFICATIONS:
• DMX channels: 1, 2 or 4
• Power output: 5A per channel, 15A max
• Input voltage equals output voltage
• AC power: Autoswitching 100-240VAC 50/60Hz
• Weight: 5lbs (2.2kg)
